48V 314Ah Stackable LiFePO4 Battery

Stackable Battery for home storage.

PP072 · EverVolt New Energy · Factory-Direct Manufacturer

48V 314Ah Stackable Li-ion Battery System Product Image 1
Nominal Voltage: 51.2VEnergy Range: 10.04~40.19kWhProtection Rating: IP66Energy storage battery product

Applications

home storage
Get a Quote View Similar Products

Product Visuals

Product Images & Diagrams

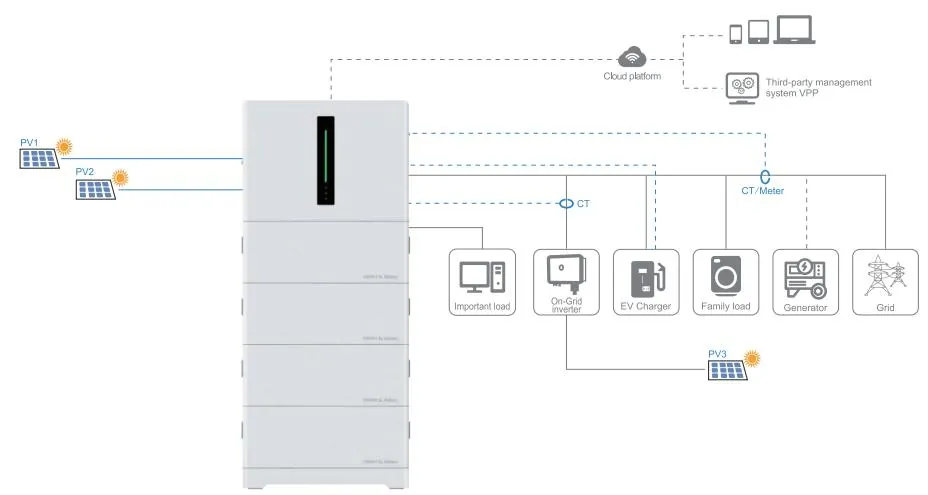

48V 314Ah Stackable Li-ion Battery System Typicalapplication

Typical application
48V 314Ah Stackable Li-ion Battery System ResidentialEnergyStorageBattery

Residential Energy Storage Battery
48V 314Ah Stackable Li-ion Battery System 48V314AHStackedLithium-ionBatterySystem

48V314AH Stacked Lithium-ion Battery System

Specifications

Detailed Specifications

48V314AH Stacked Lithium-ion Battery System

MODELEHB48314D10S1P
Cell technologyLiFePO4
Battery voltage51.2Vdc
Max. expandable number4
Energy capacity10kWh
Cell type314Ah
Scalable capacity range10kWh~40kWh
DODMax. 100% DOD(settable)
Max. charging power5KW@1 module, 6kW@>1 module
Max. discharging power5KW@1 module, 6kW@>1 module
Max. charging current100A
Max. discharge current105A@1 module, 120A@>1 module
Communication interface485 and CAN
CertificationIEC 62619, IEC 63056, UN 38.3
Dimensions(W×H×D)(mm)700×250×405
Weight(kg)83
Base parameters
Dimensions(W×H×D)(mm)700×81.5×405
Weight(kg)4.8

48V314AH Stacked Lithium-ion Battery System

ModelEHB48314D10S1PEHB48314D10S2PEHB48314D10S3PEHB48314D10S4P
Cathode materialLiFePO4
Rated voltage/V51.2
Rated capacity/Ah3146289421256
Rated energy/kWh10.0420.0930.1440.19
Standard parallel unit/P1234
Output power/kW5101010
Charge voltage/V58.4
Operating voltage range/V51.2
Max. charge current/A100200200200
Max. discharge current/A100200200200
Operating temperature/°CCharge temperature/°C0~55
Discharge temperature/°C-20~55
Weight/kg15+85×115+85×215+85×315+85×4
Dimension(W×D×H)(mm)720×410×495720×410×745720×410×995720×410×1245
IP ratingIP66
CertificationUN38.3, CE-EMC
Cooling methodFan cooling
CommunicationCAN/RS485
Cycle life≥8000 Cycles@0.5C/90%DOD@80%EOL, 25±2°C
Display configurationQuick-connect terminal, ON/OFF button, SOC indicator light
