EAPVESS130K261KWH-C All-in-One Commercial Energy Storage System (PV-Storage-Diesel)

PV-Storage-Diesel All-in-One for microgrids, diesel-PV-storage hybrid, C&I backup.

PP064 · EverVolt New Energy · Factory-Direct Manufacturer

EAPVESS130K261KWH-C PV-Storage-Diesel All-in-One Product Image 1
Storage Capacity: 261kWhGrid/Backup Power: 130kWMax PV Input: 260kWC&I storage product

Models

EAPVESS130K261KWH-C

Applications

microgridsdiesel-PV-storage hybridC&I backup
Get a Quote View Similar Products

Product Visuals

Product Images & Diagrams

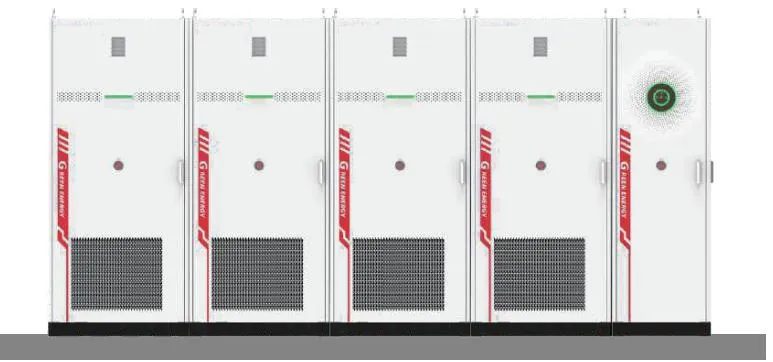

EAPVESS130K261KWH-C PV-Storage-Diesel All-in-One C&IEnergyStorageSystemEAPVESS130K261KWH-C

C&I Energy Storage System EAPVESS130K261KWH-C

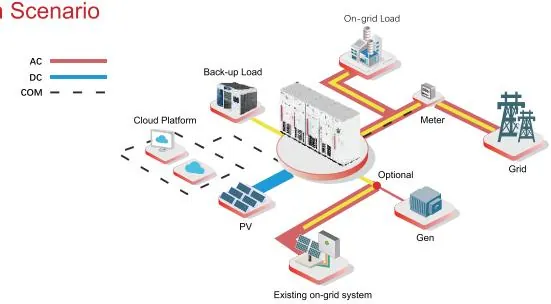

EAPVESS130K261KWH-C PV-Storage-Diesel All-in-One ApplicationScenario

Application Scenario

Specifications

Detailed Specifications

Specification

MODELEAPVESS130K261KWH-C
Battery parameters
Cell314Ah
Configuration1P260S
Rated energy261kWh
Rated voltage832Vdc
Voltage range728~949Vdc
Max. expandable quantity4 clusters
PV parameters
Max. input power260kW
Max. input voltage950Vdc
Rated input voltage810Vdc
Starting voltage220Vdc
Max. input/short-circuit current52/55Hz
MPPT quantity6
Max. number of MPPT strings3
Grid parameters
Rated input/output power260/130kW
Voltage range380/400Vac(-20%~20%), 3/N/PE
Rated input current394A/376.8A
Rated output current197A/188.4A
Power factor>0.99(0.8 lead~0.8 lag)
THDi<3%@rated power
Diesel engine parameters
Rated power130kW
Voltage range380/400Vac(-20%~20%), 3/N/PE
Rated current197A/188.4A
Backup parameters
Rated power130kW
Rated voltage380/400Vac, 3/N/PE
Rated frequency50/60Hz
Rated current197A/188.4A
THDi<3%@linear rated power
System general parameters
On-grid and off-grid switching time<20ms
Max. conversion efficiency99%
Europe/MPPT efficiency98.2%/99.9%
IP ratingBattery cabinet(IP54), battery pack(IP67), power distribution cabinet(IP20), PV-ESS inverter(IP65), power distribution box(IP55)
Operating temperature-30~60°C(>45°C derating)
Relative humidity<95%RH(non-condensing)
Altitude<4000m(>2000m derating)
Cooling methodBattery cabinet@Liquid cooling/PV-ESS inverter@air cooling
Noise<65dB
Fire protection systemCell level+cabinet level gas fire-fighting(perfluorohexanone)/aerosol+water fire-fighting
Wired/wireless communicationEthernet(1 Modbus-TCP), RS485(1 Modbus-RTU)/4G/WIFI
Human-computer interactionLED, APP, Web
StandardsIEC62109-1/2, IEC62619, IEC62477-1, UN38.3, UL9540A, UL1973, IEC62933-5-2, IEC61439-2 GB/T34120, GB/T34133, EN50549, IEC61000-6-1,2,3,4
Dimensions(WxHxD)(mm)1000x2250x1350@battery cabinet, 800x2250x1350@power distribution cabinet
Weight(kg)≤2000@battery cabinet, ≤1000@power distribution cabinet
