Solar Inverters & PCS Home Inverter 4 Models Full Spec Table

Single-Phase Solar Inverter

Home Inverter for home PV.

PP016 · EverVolt New Energy · Factory-Direct Manufacturer

Single-Phase Home Inverter Product Image 1
Rated Power: 3 / 4 / 5 / 6kWMax Input Voltage: 600VRated Input Voltage: 360VInverter & PCS product

Models

EA3KSIEA4KSIEA5KSIEA6KSI

Applications

home PV
Get a Quote View Similar Products

Product Visuals

Product Images & Diagrams

Single-Phase Home Inverter Single-Phase Home Inverter

Single-Phase Home Inverter

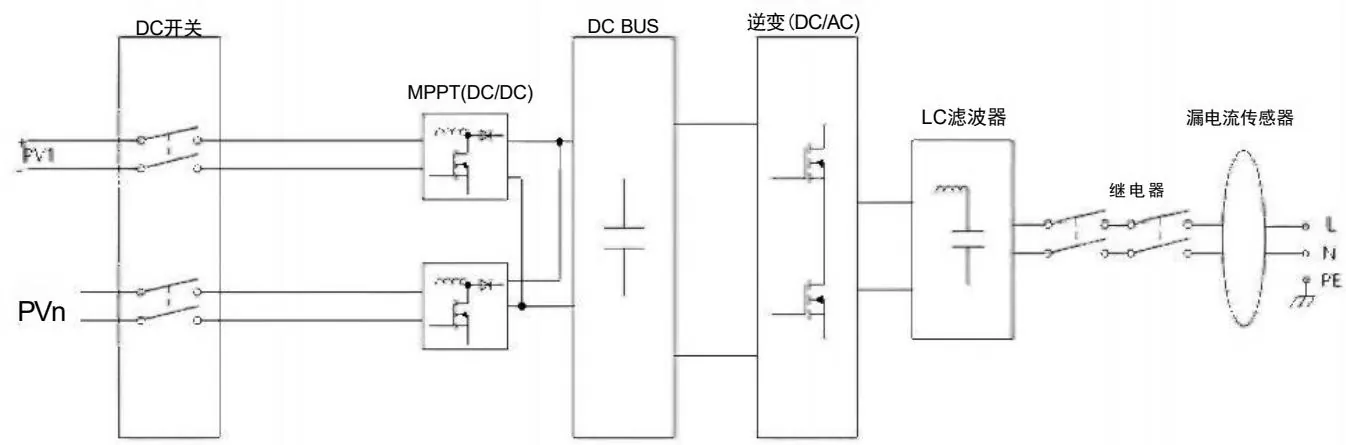

Single-Phase Home Inverter Electrical Topology

Electrical Topology

Specifications

Detailed Specifications

Key Parameters

ModelEA3KSIEA4KSIEA5KSIEA6KSI
Input (DC)
Max Input Power3900W5200W6500W7800W
Max Input Voltage600V
Rated Input Voltage360V
MPP Voltage Range90-550V
Full-Load MPP Voltage Range300V-480V200V-480V250V-480V300V-480V
Max Input Current15A15Ax215Ax215Ax2
MPP Count1222
Max Short-Circuit Current20A20A×220Ax220Ax2
Output Parameters (AC)
Rated Output Power3000W4000W5000w6000W
Max Output Power3300W4400W5500W6600W
Grid-Connected Voltage Range180-280V (per NB/T 32004:2013)
Rated Grid-Connected VoltageSingle-phase 220/230V
Rated Grid-Connected Frequency50/60Hz
Power Factor>0.99 (at rated power)
Adjustable Power Factor Range0.8 lagging ~ 0.8 leading
Efficiency
Max Conversion Efficiency97.80%
European Efficiency97.30%
Protection
Islanding ProtectionYes
Output Short-Circuit ProtectionYes
Leakage Current ProtectionYes
DC Reverse-Polarity ProtectionYes
DC Input Impedance DetectionYes
DC SwitchOptional
General Parameters
Dimensions (W×H×D)310×390×125mm370×420×12mm370×420×127mm
Weight<9kg<12kg
Operating Temperature Range-25~60°C (derating above 45°C)
Protection RatingIP65
Operating Altitude4000m (derating above 2000m)
CommunicationRS485×2,Wi-Fi/GPRS
Isolation MethodNo isolation transformer
Noise<40dB
Mounting MethodWall-mounted
Operating Humidity0~95% (no condensation)
Heat Dissipation MethodNatural cooling
Night Self-Consumption<0.5W
DisplayLED lamp
DC TerminalsMC4
AC TerminalsPlug-and-play
Certification StandardsNB/T 32004:2013.JEC/EN 62109-1.IEC/EN 62109-2.IEC/EN61000-6-1.JEC/EN61000-6-2.JEC/EN61000-6-3.JEC/EN61000-6-4.VDE0126-1-1VDE-AR-N-4105,CE10-21,EN54038,AS/NZS4777.2:2015,1IEC61727:2004,IEC62116:2014,IEC61683:1999,EC60068

For Buyers

Procurement Guide

Before placing an order, confirm the following points with our engineers to receive an accurate wholesale quotation:

  • Confirm target country/region certification requirements
  • Provide project capacity, grid/off-grid mode and installation scenario
  • Specify target model or power range in inquiry
  • Confirm DC voltage range, AC voltage level and grid code
  • Request wholesale price, MOQ and factory delivery lead time
  • Confirm OEM/ODM scope: branding, packaging, documentation and interface customization
