Key Parameters
| Product Specification | 2.5MW-5.16MWh |
|---|---|
| Battery Parameters | |
| Cell Type | 3.2V/280Ah |
| System Battery Configuration | 360S1P×16 |
| Battery Rated Capacity | 5160kWh |
| Battery Voltage Range | 1008~1314V |
| AC Side Parameters | |
| AC Side Rated Power | 2500kVA |
| AC Current Distortion | <3% (at rated power) |
| DC Component | ≤0.5% (at rated power) |
| AC Side Rated Voltage | 630V |
| Grid Voltage Range | 535.5~693V |
| Power Factor | >0.99 (at rated power) |
| Adjustable Reactive Power Range | -105%~105% |
| Rated Grid Frequency | 50Hz |
| Grid Frequency Range | 45-55Hz |
| Isolation Method | Transformer isolation |
| Transformer Parameters | |
| Rated Power | 2500kVA |
| Voltage Ratio | 35kV/0.63kV/0.63kV |
| Vector Group | Dy11y11 |
| System Parameters | |
| Converter + Step-Up Unit Dimensions (W×H×D) | 8400×3100×2800mm (dry-type) |

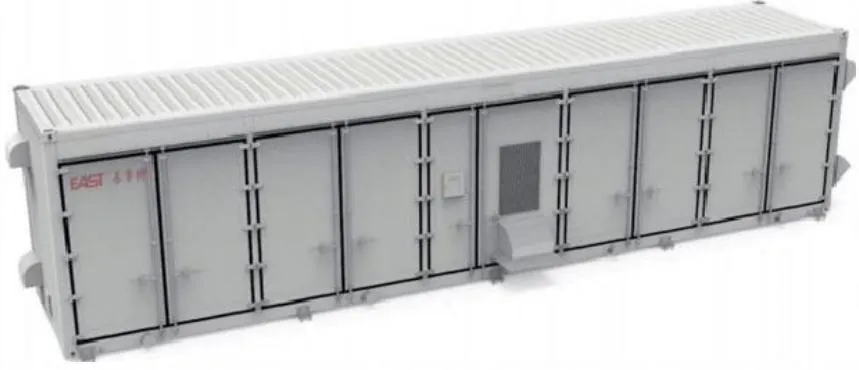

| Battery Container Dimensions (W×H×D) | 2438×3250×13106mm |
| Converter + Step-Up Unit Weight | 15T |
| Battery Container Weight | 66T |
| Protection / Anti-Corrosion Rating | IP54/C4 |
| Operating Temperature Range | -30~55°C (derating above 45°C) |
| Operating Humidity Range | 0~95% (no condensation) |
| Max Operating Altitude | 4000m (derating above 2000m) |
| Battery Temperature Control | Smart air cooling |
| Converter Cooling Method | Smart air cooling |
| Fire Suppression System (Outdoor Cabinet) | Aerosol + water fire suppression (optional heptafluoropropane or FK-5-1-12) |
| System Communication Interface | Ethernet, fiber optic |
| External System Communication Protocol | Modbus TCP、IEC61850 |
