Battery Energy Storage Systems Liquid-Cooled Outdoor Battery Cabinet 2 Models Full Spec Table

1500V Liquid-Cooled Outdoor Battery Energy Storage Cabinet

Liquid-Cooled Outdoor Battery Cabinet for utility-scale storage.

PP013 · EverVolt New Energy · Factory-Direct Manufacturer

Cell: 3.2V/280AhPer Cluster: 1P416S / 373kWhSystem Energy: 2.982 / 3.350MWhEnergy storage battery product

Models

EEB1331280R416S08PEEB1331280R416S09P

utility-scale storage

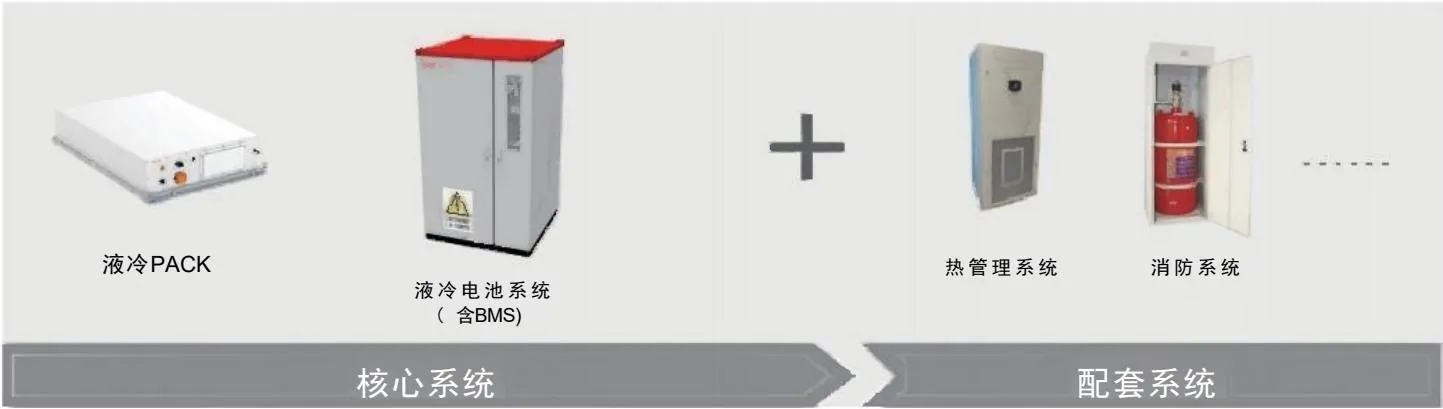

Product Visuals

Application scenarios: renewable storage integration, shared storage

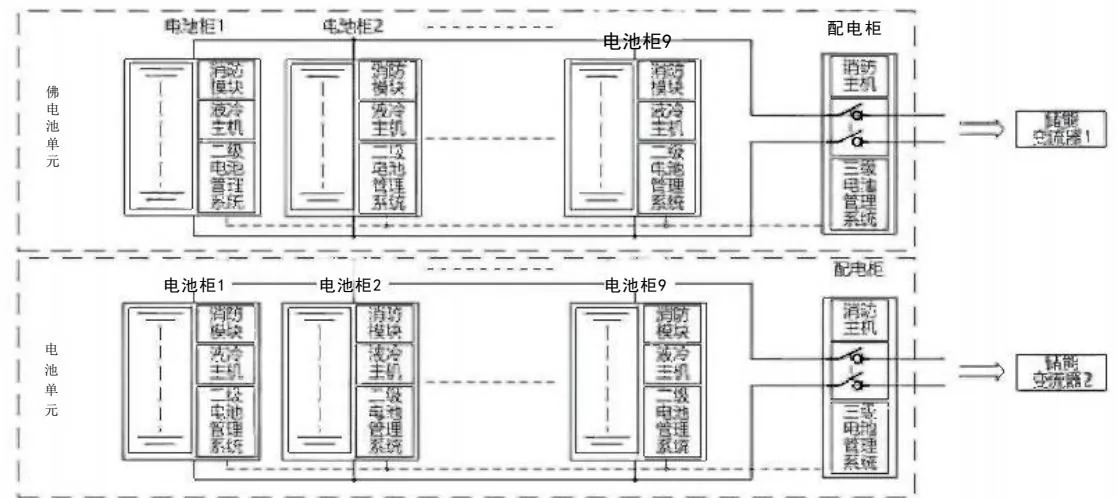

Electrical Topology

Specifications

System Parameters
System Model	EEB1331280R416S08P	EEB1331280R416S09P
Battery Parameters
Cell Type	3.2V/280Ah
Battery Module	52S1P46.59kWh
Battery Cluster	1P416S 373kWh
Battery System Voltage	1164.8~1497.6V
Battery System Energy	2982kWh	3350kWh
Protection / Anti-Corrosion Rating	IP55/C4
Operating Temperature Range	-30~50°C (derating above 40°C)
Operating Humidity Range	0~95% (no condensation)
Max Operating Altitude	4000m (derating above 3000m)
Fire Suppression System	Aerosol / Heptafluoropropane / FK-5-1-12
System Communication Interface	CAN、LAN
External Communication Protocol	CAN2.0、IEC61850/IEC104/MODBUS-TCP
Dimensions (W×D×H)	1257×1300×2500mm

For Buyers

Before placing an order, confirm the following points with our engineers to receive an accurate wholesale quotation:

Confirm target country/region certification requirements
Provide project capacity, grid/off-grid mode and installation scenario
Specify target model or power range in inquiry
Confirm cell, cycle life, communication protocol and compatible inverter
Request wholesale price, MOQ and factory delivery lead time
Confirm OEM/ODM scope: branding, packaging, documentation and interface customization

Submit product models, capacity, application scenarios and target market — our team replies within 24h on working days.

Free Selection Advice24h ResponseConfidential InquiriesOEM Support

Prepare models, quantities and application scenarios
